Our team prepares precise shop drawings for fire protection, HVAC, and related systems, ensuring full compliance with NFPA, Civil Defense, and international safety standards.

Key features include:

• Clear dimensions and installation details for all systems.

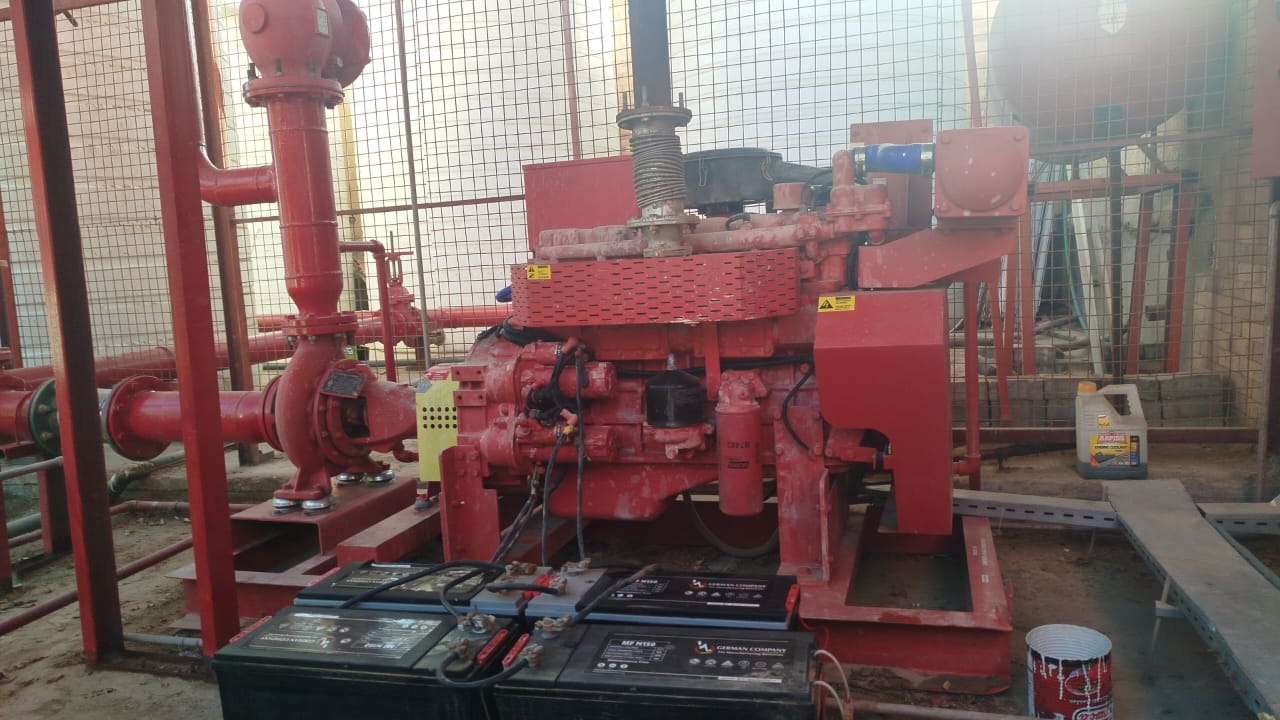

• Layouts for pump rooms, fire water networks, gas suppression systems like FM-200 and CO₂, fire alarm systems, and HVAC equipment.

• Accurate material specifications and spacing to guarantee safe, efficient, and code-compliant installation.

These shop drawings provide a reliable blueprint for the successful and safe execution of all fire protection, HVAC, and related systems.
